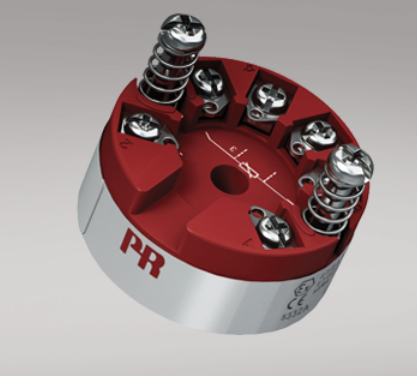

2 Wire Level Transmitter PR 5343B With Programmable Sensor Error Value Unique Process Calibration Function

Brand Name : PR

Model Number : PR 5343B

Certification : CO

Place of Origin : Denmark

MOQ : 1

Price : 144usd

Payment Terms : T/T

Supply Ability : 99pcs 4-6 weeks

Delivery Time : 5-7 work days

Loop Powered : Yes

Output : 4-20mA

Max Span : 400/(1000)

Package : Bulk

Switching Output : Relay

Relative Humidity : 5 to 95%, non-condensing

Material : Plastic and Metal

User Memory : 48 MB

Type : Linear Transducer

Hart : 16 Channels 4-20 mA, HART

Primary Power : DC input, 2-wire

Supply Voltage : 10.8 to 42.4 Vdc at terminals

Response Time : ≤1 second

Power : 24VDC(12-30)VDC

Operating Temperature : -40°C to 85°C

Contact Now

2-Wire Level Transmitter

PR 5343B

Product Overview

Potentiometer or Ohmic input
Programmable sensor error value
High measurement accuracy
Unique process calibration function
Programmable via standard PC

Environmental Conditions

Operating temperature	-40°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-cond.)
Protection degree (encl./terminal)	IP68 / IP00

Mechanical Specifications

Dimensions	Ø 44 x 20.2 mm
Weight approx.	50 g
Wire size	1 x 1.5 mm² stranded wire
Screw terminal torque	0.4 Nm
Vibration	IEC 60068-2-6
2...25 Hz	±1.6 mm
25...100 Hz	±4 g

Common Specifications

Supply

Supply voltage	8.0...30 VDC
Internal power dissipation	25 mW…0.7 W

Response Time

Response time (programmable)	0.33...60 s
Voltage drop	8.0 VDC
Warm-up time	5 min.
Programming	PR 5909 Loop Link communications interface
Signal / noise ratio	> 60 dB
Accuracy	Better than 0.1% of sel. range
Signal dynamics, input	19 bit
Signal dynamics, output	16 bit
Effect of supply voltage change	< 0.005% of span / VDC
EMC immunity influence	< ±0.5% of span

Input Specifications

Common Input Specifications

Max. offset

50% of selected max. value

Linear Resistance Input

Measurement range / min. range (span)	0...100 kΩ / 1 kΩ
Cable resistance per wire (max.)	100 Ω
Sensor current	> 25 μA, < 120 μA
Effect of sensor cable resistance (3-wire)	< 0.002 Ω / Ω
Sensor error detection	Yes
Min. measurement range	1 kΩ

Output Specifications

Current Output

Signal range	4…20 mA
Min. signal range	16 mA
Load (@ current output)	≤ (Vsupply - 8) / 0.023 [Ω]
Load stability	≤ 0.01% of span / 100 Ω
Sensor error indication	Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale	23 mA / 3.5 mA

Common Output Specifications

Updating time	135 ms
of span	= of the presently selected range

Intrinsic Safety & Ex Marking

ATEX	II 1 G Ex ia IIC T6...T4 Ga, II 2 D Ex ia IIIC Db, I M1 Ex ia I Ma
IECEx	Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma
FM, US	Cl. I, Div. 1, Gp. A, B, C, D T4/T6; Cl. I Zone 0, AEx ia IIC T4/T6; Cl. 1, Div. 2, Gp. A, B, C, D, T4/T6
INMETRO	Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma

Compliance & Standards

EMC	2014/30/EU
ATEX	2014/34/EU
RoHS	2011/65/EU
EAC	TR-CU 020/2011
EAC Ex	TR-CU 012/2011

Certifications & Approvals

ATEX	DEKRA 20ATEX0105X
IECEx	DEK 20.0062X
FM	FM17US0013X
INMETRO	DEKRA 23.0010X
EAC Ex	EAEU KZ 7500361.01.01.08756
DNV Marine	TAA0000101
